Product Description
Main Features:
Support 4G LTE/3G/2G network communications, providing multiple
functions such as single call, group call, all call, and GPS
positioning. The indoor signal blind zone can realize
Integrated connection
Background control
Independent LoraWan protocol module

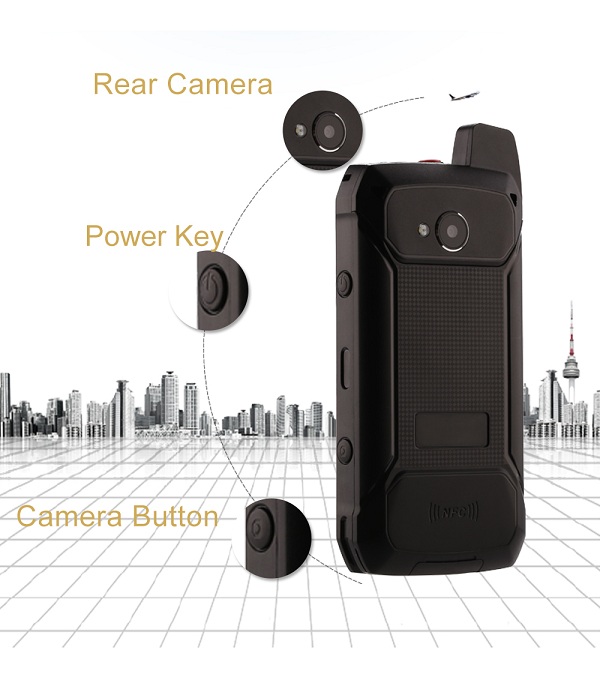

Built-in front and rear HD camera, visual communication makes life
easier.
Low power transmission distance.LoRa module sensitivity-148dBm,
communication distance greater than 10 km, to solve the power
consumption and transmission distance can not have both problems,
there is a very large application space in practical applications.
Provide the establishment and deletion of company-level platforms,
and can create and delete predefined groups, assign device users,
and manage user rights.
Easy to build and deploy, license-free Band nodes.LoRa module is
extremely low cost, will occupy a huge advantage in the future
large-scale promotion.
Long battery life.LoRa module receives current 10MA, sleep current
less than 200NA,longer battery life
Specification:
Memory | 2Gb+ 16Gb |
Card holder | Larger card(Standard sim-card)+Smaller card (Nano sim-card) |
Motor | Standard |
GPS | Beidou+GPS |
Touch screen | G+FF |
Bands | 2G:GSM B8/B3/B2/B5
3G:TD-SCDMA B34/B39
WCDMA B1/B2/B5/B8
CDMA2000:BC0
4G:TDD-LTE B34/B38/B39/B40/B41
FDD-LTE B1/B2/B3/B4/B5/B7/B8/B12/B17/B20 |
Frequency | Quad-core,2Ghz |
PTT button | Support |
Battery | Polymers 5000mAh |
System | Android 9.0 |
Standby | 920 hours |
Bluetooth | 5.0 |
Loudspeaker | 2W |
LORa | Built-in |
WIFI | Standard |
Camera. | Front-camera 5MP,Rear camera13MP |
Main screen | 4.0寸 |
Charging stand | Standard |
Charging port | Standard tpy-c |
Headphones | M6+3.5 |
Color | Black |
Language | ALL languages |
NFC | Optional |
T Card | Optional,up to128GB |
M6 expansion port | Standard |
Size | 137*68*20.7mm |
Accessories | Charger*1; Cable*1; Battery*1; manual book *1; Packing box*1, Back
clip*1；Antenna*1 |
About Us:
Grandtime is a leading provider focusing on R & D and production of
public network intercom and police law enforcement
recorder,Committed to providing competitive mobile terminal
products for Public Security, Transportation, Maritime, Health,
Industrial and commercial sectors,Strategic partnerships with
industry leaders in Mexico and Spain,Grandtime have extensive
experience in overseas software system deployment.
FAQ:
Q : Can I purchase a sample of F39-01 radio?
A : Yes, you could purchase a demo unit of F39-01 radio. The more
specific purpose and information as you provide, the detailed and
personalized response would be reached to you.
Q : About distribution and retail.
A : For the distribution and retail inquiry, please contact us
through the andy@grandtime-cn.com . It would be easier to start our
conversation if you let us know details of your company.
Q: What are your payment methods ?
A: We receive T/T, 30% deposit and the balance clear before
shipping your goods.
Q: Delivery time
A : 1. Two way radios sample: 1-2 working days
2. Two way radios wholesales orders: 3-7 working days according to
different quantities
3. Two way radios OEM: 7-10 working days after receiving your
sample confirmation and payment
Application scenarios:
