Product Description
Main Features:
Intellisense and background control
Integrated connection wirh advanced Beidou GPS
Independent LoraWan protocol module
advanced Android 9.0 system ensure the device work faster and more
effectively.
Low power transmission range.LoRa module sensitivity-148dBm, longer
communication distance than 10 km.
there is a very large application space in practical applications.
Easy to build and deploy, license-free Band nodes.LoRa module is
extremely low-cost and occupies a huge advantage in the future
large-scale promotion.
Long battery life.LoRa module receives current 10MA, sleep current
less than 200NA,longer battery life
Specification:
| Bands | 2G:GSM B8/B3/B2/B5
3G:TD-SCDMA B34/B39
WCDMA B1/B2/B5/B8
CDMA2000:BC0
4G:TDD-LTE B34/B38/B39/B40/B41
FDD-LTE B1/B2/B3/B4/B5/B7/B8/B12/B17/B20 |
| Frequency | Quad-core,2Ghz |
| Card holder | Larger card(Standard sim-card)+Smaller card (Nano sim-card) |
| System | Android 9.0 |
| Bluetooth | 5.0 |
| Touch screen | G+FF |
| T Card | Optional,up to128GB |
| Main screen | 4.0 inches |
| Memory | 2Gb + 16Gb |
| Battery | Polymers 5000mAh |
| PTT button | Yes |
| Camera. | Front-camera 5MP,Rear camera13MP |
| LORa | Built-in |
| Loudspeaker | 2W |
| Standby | 920 hours |
| GPS | Beidou+GPS |
| Motor | Standard |
| WIFI | Standard |
| Charging port | Standard tpy-c |
| Headphones | M6+3.5 |
| Language | ALL languages |
| M6 expansion port | Standard |
| Color | Black |
| Charging stand | Standard |
| NFC | Optional |
| Size | 137*68*20.7mm |

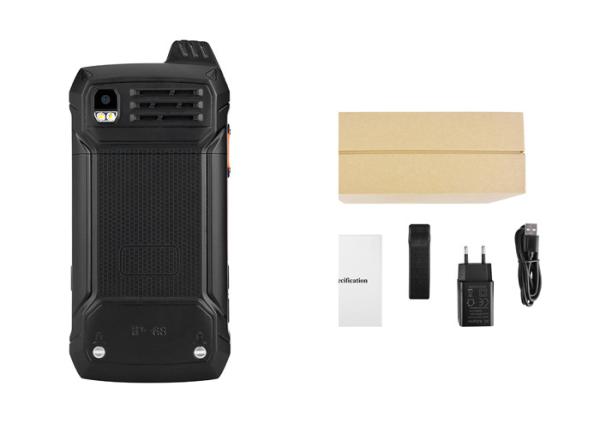

| Accessories | Cable*1; Charger*1; Battery*1; manual book *1; Packing box*1, Back
clip*1；Antenna*1 |
About Us:
Grandtime is a leading provider focusing on research & development
and production of public network intercom and police law
enforcement recorder. We are committed to providing competitive
mobile terminal products for Public Security, Transportation,
Maritime, Health, Industrial and commercial sectors, and have
established trategic partnerships with industry leaders in Mexico
and Spain. Grandtime have extensive experience in overseas software
system deployment.
FAQ:
Q :Can I purchase a sample of F39-01 radio?
A : Yes, you could purchase a demo unit of F39-01 radio sample. The
more specific purpose and information as you provide, the detailed
and personalized response would be easier to reach you.
Q : How about distribution and retail.
A : For the distribution and retail inquiry, please contact us
through andy@grandtime-cn.com . It would be easier to start our
conversation if you let us know details of your company.
Q: What is delivery time
A : 1. Two way radios sample: 1-2 working days
2. Two way radios wholesales orders: 3-7 working days according to
different quantities
3. Two way radios OEM: 7-10 working days after receiving your
sample confirmation and payment
Q: What are your payment methods ?
A: We receive T/T, 30% deposit and the balance clear before
shipping your goods.
